ماكينة تصنيع الكمامات الطبية (الأقنعة الجراحية)
هذا المنتج يوقف لتزويد و لم يعد للبيع .
-
- ماكينة تصنيع الكمامات الطبية (الأقنعة الجراحية)This surgical mask machine is designed to carry out the automatic production of flat earloop masks with outstanding efficiency. It is a multifunctional piece of machinery, realizing the process of feeding, folding, and pressing, nose bridge tendon feeding, mask forming, earloop welding, finished product cutting, and more.
-
- خط إنتاج الكمامة الجراحية (وظيفة الطي الآلي بالكامل)This surgical face mask production line is applied for the automatic forming of folding masks. This is multifunctional machinery that carries out raw material roll unwinding, roller driving, feeding nose clip, welding and wrapping nose clip, (pneumatic valve hole optional), (printing optional), welding earloop 1, welding earloop 2, folding, edge welding, cutting, and finished product discharging. All these processes are fully automated, giving the production line the advantages of stable performance, high output capacity, low defect rate, and easy operation.
The following auxiliary materials and equipment should be provided by the customer.

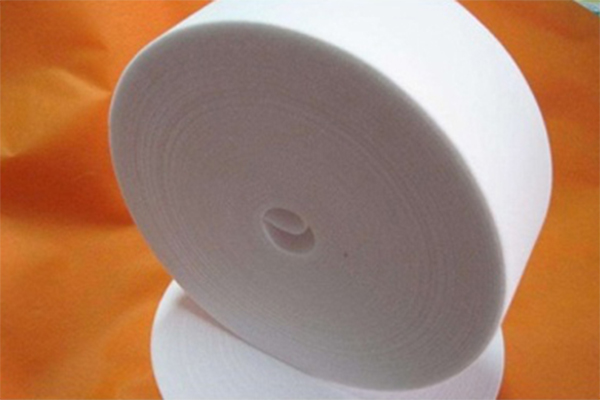

Anti-filter meltdown cloth
Gram weight: ≥22g/ m²
Filter efficiency: KN90, KN95, KN100 or BFE95/BFE 9 standard ( Medical use)
Coil: ID40- 85mm, OD 600mm, Max. OD 700mm， Width 175mm

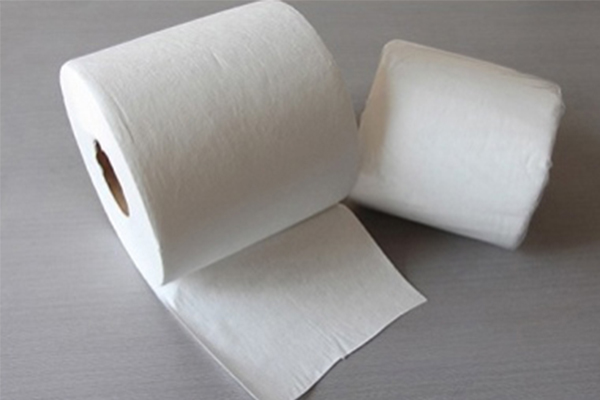

Nonwoven
Inner/outer layer material for mask
Gram weight: 25-30g/ m²
Color: blue and white
Coil: ID40- 85mm, OD 600mm, Max.OD 700mm， Width 195mm

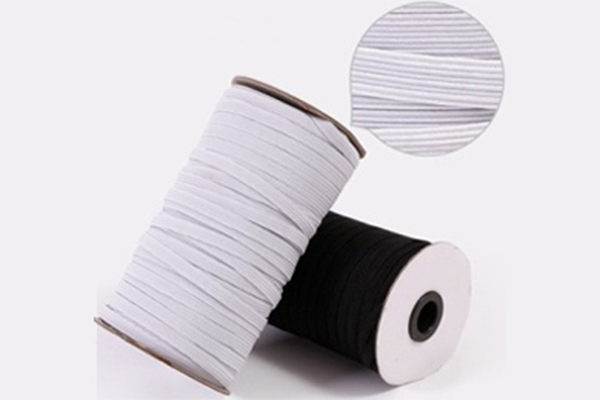

Earloop Elastic nonwoven fabrics
Thread diameter: 2.5-3.5mm(hollow)
Ultrasonic welding to mask

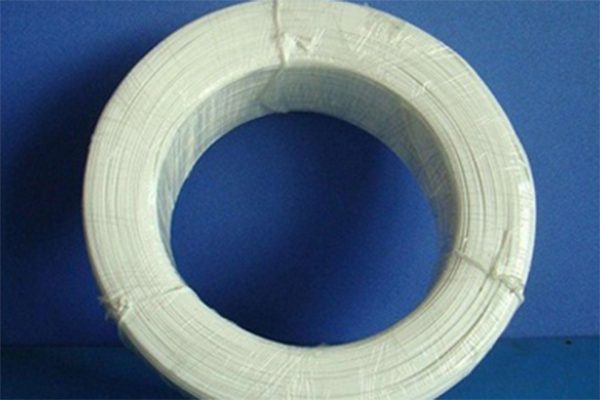

Aluminum nose strip
Single core: 3. 0* 0. 5mm
Automatically seamed into the mask
Coil：ID>152mm, OD≤450mm, Height &lgt;72mm

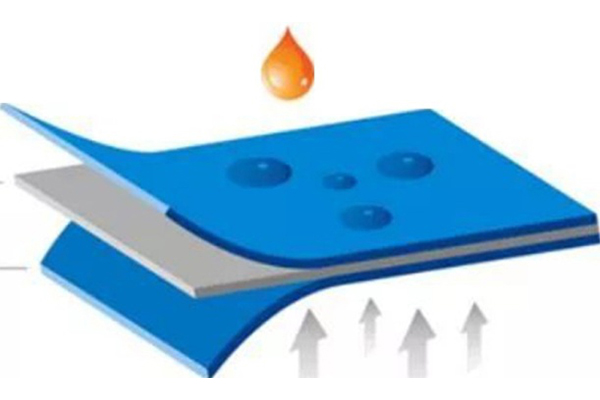

Spunbond (PP)：Single layer
Meltblown (PP): Single or multi layer
Sterilization
The sterilizing time is 10 to 12 hours, and after it is completed, it needs forcible resolution within the sterilizer for 12 hours, the whole process adding up to about 24 hours. After the mask is finished, the resolution time can be shortened to about 7 days to achieve the inspection standard.
Package
The packaging box for the disposable masks come in two sizes: large 220 * 120 * 100mm, small size 180 * 100 * 70mm. Individual packaging is used for the large size, while 50-piece package is adopted for small size orders.
